DREAMS 1224 UV ONEPASS PRINTING SOLUTION (120Series)
Fully Automatic High-Speed UV Inkjet One-pass Board Printing Production Line
Supports direct printing on a wide range of rigid substrates.
Global decorative building panel market is growing steadily, driven mainly by commercial renovation & retail fit-out projects.
The shift from pre-finished decorative boards to digitally printed plain substrates creates huge opportunities for industrial UV inkjet.
OnePass industry printers address the pain point of low throughput of conventional multi-pass UV machines, enabling mass customization for PVC, MDF, HPL, PET panels, ACP, sintered stone and display materials.
Sharp tiny text & scannable micro QR codes, variable data support
Print gloss & matte on same substrate in one pass
Pre-reserved 6-color channel for white ink / spot color / varnish upgrade
Double-sided printing with 0.2mm accurate registration
Non-contact printhead cleaning to extend head service lif
30% higher precision, 40% less UV ink consumption
| Dimension |
Scanning UV Printing |
Dreams One-pass UV printing |
| Architecture |
Scanning |
ONE Pass & Scanning |
| Printhead arrangement |
Limited (few printheads) |
Page-wide (full-width) |
| Four color Printhead wide |
53mm-720mm |
1250mm-1680mm |
| Production method |
Batch |
Continuous |
| Automation |
Not achievable |
Fully automatic |
| Production management software |
None |
Order system + Production Management System + IoT |
| Labor |
Multiple operators |
Reduced (fewer operators) |
| Machine utilization |
Always very low |
Very high with stable orders |
| Floor space |
High (large footprint) |
Lower (smaller footprint) |
| Color consistency |
Machine-to-machine variation |
Unified |
| High-volume orders |
Limited |
Designed for mass production |
| Return on Investment (ROI) |
Low (low for small orders; also low when large orders cannot be produced) |
High (higher ROI with larger orders) |
Single pass (Xenons Dreams 1224/1240/1632 Series) maybe Change More This is the revolutionary change that One Pass printers bring to printing workshops, the decorative materials industry, and modern industrial manufacturing.
| Item |
Parameter |
|
|
| Printheads |
|
|
|
| Type |
T3200U3-2 |
G6 |
KM9888H |
| Arrangement |
19×2 / 19×3 |
24×2 / 24×3 |
19×2 / 19×3 |
| Quantity |
38 / 57 pcs |
48 pcs |
38 pcs |
| Print Speed |
|
|
|
| Printing Solution |
UV / GUV |
UV / GUV |
UV / GUV |
| High-efficiency Mode |
4pass: 11 s/pcs |
4pass: 9 s/pcs |
4pass: 9 s/pcs |
| Production Mode |
6pass: 17 s/pcs |
6pass: 13 s/pcs |
6pass: 13 s/pcs |
| Quality Mode |
8pass: 23 s/pcs
12pass: 45 s/pcs |
— |
— |
| Ink Supply System |
|
|
|
| Ink Type |
UV Ink |
|
|
| Ink Color |
CMYK / WCMYKV / CMYKLcLm / CMYKOrGr |
|
|
| Ink Tank Volume |
15 L per color |
|
|
| Ink Supply Method |
Two-stage constant temperature & negative pressure |
|
|
| Printing Substrates |
|
|
|
| Max. Printing Width |
1224 mm |
|
|
| Substrates |
PVC, KT board, Coated Art Paper |
|
|
| Substrate Thickness |
0.3 mm – 50 mm |
|
|
| Software System |
|
|
|
| RIP Software |
FEIRY (Former EFI) |
|
|
| Production Software |
Yilios |
|
|
| Image Format |
PDF, TIFF, JPG |
|
|
| IoT System |
yiliOS4 |
|
|
| Functional Configuration |
|
|
|
| Printing Platform |
Vacuum suction table |
|
|
| Drive System |
Substrate: 3 rails + high-speed linear motor
Carriage: 10 rails + high-speed linear motor |
|
|
| Loading & Unloading System |

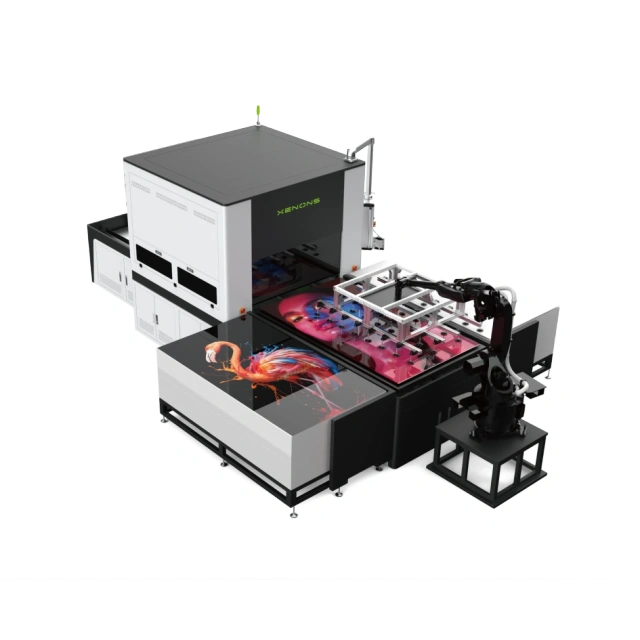

Manual + auto lifting platform; Optional single-gantry automatic loading & unloading |
|
|
| Conveying System |
Linear motor |
|
|
| Lifting Function |
4-screw 4-axis with heavy-duty gantry lifting structure |
|
|
| Auto Cleaning & Humidifying Assembly |
Non-contact negative-pressure cleaning (suction nozzle type), servo motor with dual linear guide drive |
|
|
| Working Environment |
|
|
|
| Power Supply |
Dual power: 380V / 220V |
|
|
| Power Consumption |
Peak: 22 kW
Operating: 12 kW |
|
|
| Air Pressure |
2.2 MPa |
|
|
| Temperature & Humidity |
20–30 ℃, 55–75% RH |
|
|
| Dimension & Weight |
|
|
|
| Machine Dimension |
7000 mm × 2400 mm × 2600 mm |
|
|
| Packing Dimension |
7000 mm × 2400 mm × 2600 mm ×1.12 |
|
|
| Machine Weight |
6250 Kg |
|
|
| Packed Weight |
7250 Kg |
|
|
| Selling Point Name |
Selling Point Description |
| Fast Printing Speed |
4pass: 11s/pcs；6pass:17s/pcs；8pass:23s/pcs |
| High Printing Precision |
Adopts monochrome 600dpi printing mode. High-precision carriage with adjustable error of 0.02mm. Supports 4–12pass printing. Available with image mode & solid color mode to meet diverse requirements. |
| Superior Performance for Fine Text & Barcodes |
High sharpness for tiny texts. Supports ultra-small QR code printing for instant scanning. Variable data printing function available. |
| Gloss & Matte Finish Available |
Supports full gloss printing solution and full matte printing solution. |
| Proprietary One-Pass Gloss & Matte Printing |
Exclusive technology to print gloss and matte effects on the same substrate in one single pass. Two finishes in one print expands application scenarios without extra investment in machines, printheads or varnish. |
| 6-Color Configuration Ready |
The machine reserves space for 6-color setup, allowing flexible future upgrades for varnish, spot color or white ink printing. |
| Precise Registration for Double-Sided Printing |
Simple operation for double-sided printing with convenient mechanical positioning. Registration error ≤0.2mm. High efficiency & stable quality, solves the alignment difficulty of manual lamination. |
| Direct Printing on Wide Range of Materials |
Direct print on various boards for reliable & efficient industrial production. Ideal for customers with tight lead times and helps handle large orders with instant production capacity. |
| Stable Ink Circuit with Multiple Patented Industrial Inkjet Technologies |
Multi-stage temperature control with 3 constant-temperature systems. Three heat sources keep ink temperature & viscosity consistent to minimize color difference. Large-capacity 3-stage constant-temperature ink cartridges prevent insufficient ink supply during long-run printing. |
| Non-Contact Printhead Cleaning for Longer Service Life |
Negative-pressure ink suction cleans nozzle surface. Reduces risk of physical damage to printheads and avoids foreign particles being sucked into nozzles. |
| Vivid & Accurate Colors with Lower Ink Consumption |
Adopts industry-leading UV dedicated software. Printing precision increased by 30%, while UV ink consumption reduced by 40% compared with conventional printers. |
Jingping 3D Build: Multi-layer Decorative Backdrop
Material Combinations
KT Board: Lightweight, low cost, easy cutting. Ideal for short-term events and one-off photo backdrops.
PVC Foam Board: Rigid, waterproof, deformation-resistant and reusable. Suitable for corporate annual events and long-term mall decorations.
3D Fabrication: Multi-layer assembly, curved grooving, hollow carving, embossed relief, integrated light slot fabrication.
Full-scenario Coverage
Festivals: Spring Festival, Dragon Boat Festival, Mid-Autumn Festival, National Day, Christmas, 520 / Qixi Festival
Events: Birthday parties, baby showers, wedding welcome backdrop, friend gatherings, corporate team building
Commercial: Store grand opening, mall market, exhibition booth, corporate annual meeting, new product launch
Service Advantages Free 3D renderings, modular split packaging, easy self-assembly without professional installers, local delivery & installation, 24h rush delivery, both sale & rental options.
Pain Points Solved vs Competitors
How many materials can printing by Dreams1224 UV OnepassPrinter?
| Material |
Common Abberviation |
| PVC Foam Board / PVC Cellular Board |
PVC Board / Foam PVC |
| Kraft-Telefoam Board |
KT Board |
| Polymethyl Methacrylate Sheet |
PMMA / Acrylic |
| Aluminum Composite Panel |
ACP |
| Medium Density Fiberboard |
MDF |
| Plywood |
Ply |
| Oriented Strand Board |
OSB |
| Gypsum Board / Drywall |
Drywall / Plasterboard |
| Fiber Cement Board |
FC Board |
| Calcium Silicate Board |
CS Board |
| PET Decor Panel |
PET Panel |
| High Pressure Laminate |
HPL |
| Sintered Stone |
Sintered Stone |
| Magnesium Oxide Board |
MgO Board |
| Aluminum Honeycomb Panel |
Alu Honeycomb |
| Polycarbonate Sheet |
PC |
| Polypropylene Corrugated Sheet |
PP Corrugated / Correx |
| Lyocell Decor Panel |
Lyocell Panel |
